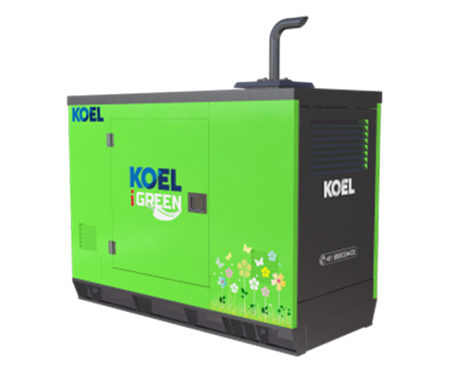

Koel iGreen Offerings
|
Features
|
|
| Compact Product: | Unmatched space efficiency |
| Low OPEX: | Best in class fuel efficiency with O2E technology |
| Robust and Reliable Product: | Lowest maintenance and trouble free product with Kirloskar Air Cooled Engines |
| Compliance: | Latest Government Emission Norms CPCB II |
| Start Type: | Controller Based Easy Push Start Type |
| Customer Service: | Quick and affordable door step service coverage (420+ service touch points and 6000+ KOEL trained service professionals on field) |
| Warranty: | 2 years warranty* & labour free onsite service under warranty period |
|
Prime Rating at rated rpm ( as per ISO8528)1 |
kVA | 5 | 7.5 | 10 | 12.5 | ||
| kW | 4 | 6 | 8 | 10 | |||
|
Genset Model |
KG1-5AS3 | KG1-7.5AS4 | KG1-10AS5 | KG1-12.5AS2 | |||
|
Frequency |
Hz | 50 | |||||
|
Power factor |
lagging | 0.8 | |||||
|
Voltage |
V | 230 (1Ø) & 415 (3Ø) | |||||
|
Governing class (As per ISO 8528 Part-V) |
G2 | ||||||
|
Noise level |
dBA | < 75 | |||||
|
Fuel Consumption* |
At 100% Load | Ltrs/hr | 1.60 | 2.21 | 3.00 | 3.45 | |
| At 75% Load | 1.30 | 1.62 | 2.40 | 2.65 | |||
| At 50% Load | 1.0 | 1.21 | 1.80 | 1.94 | |||
|
Fuel tank capacity |
Ltrs | 50 | 50 | 50 | 50 | ||
|
Weight of genset with canopy (approx..)^ |
Dry | Kg | 670 | 680 | 750 | 840 | |
| Wet | Kg | 720 | 730 | 800 | 890 | ||
|
Overall dimensions of genset^ |
Length | mm | 1310 | 1310 | 1760 | 1760 | |
| Width | mm | 810 | 810 | 820 | 820 | ||
| Height | mm | 1330 | 1330 | 1330 | 1330 | ||
|
Electrical Battery starting voltage |
Volts-DC | 12 | |||||
| ENGINE | |||||||
|
Engine Model |
EA10 G1 | EA10 G1 | EA16 G1 | EA16 G1 | |||
|
Rated output (Prime Continuous rating as per ISO 8528-1) |
kW | 7.3 | 7.3 | 11.8 | 11.8 | ||
| HP | 10 | 10 | 16 | 16 | |||
|
Cooling System |
Air | ||||||
|
No. of cylinder |
Number | 1 | 1 | 2 | 2 | ||
|
Cubic capacity |
Ltrs | 0.95 | 0.95 | 1.56 | 1.56 | ||
|
Bore x Stroke |
mm | 102 x 116 | 102 x 116 | 95 x 110 | 95 x 110 | ||
|
Rated Speed |
RPM | 1500 | 1500 | 1500 | 1500 | ||
|
Aspiration |
NA/TC/TA | NA | NA | NA | NA | ||
|
Lube Oil change period |
Hrs | 500 hrs | |||||
|
Lube Oil Sump Capacity |
Ltrs | 3.5 | 3.5 | 6.5 | 6.5 | ||
|
Coolant Capacity |
Ltrs | NA | NA | NA | NA | ||
|
ALTERNATOR |
|||||||
|
Insulation Class |
Class H | ||||||
|
Alternator Efficiency (at 100% load) 0.8 pf** |
% | 78.1 | 82.5 | 82.6 | 84.9 | ||
|
Max Voltage Dip at Full Load 0.8 pf Lag |
Sec | < 20% | |||||
|
Max Time to build up rated voltage at Rated RPM |
< 5 sec provided engine reach the rated speed | ||||||
