Features
|
|
| Low OPEX: | Best in class fuel efficiency with O2E technology |
| Robust and Reliable Product: | Lowest maintenance and trouble free product with Kirloskar Engines |
| Option of Air Cooled and Water Cooled Engines | |
| Compliance: | Latest Government Emission Norms CPCB II |
| Start Type: | Controller Based Easy Push Start Type |
| Customer Service: | Quick and affordable door step service coverage (420+ service touch points and 6000+ KOEL trained service professionals on field) |
| Warranty: | 2 years warranty & labour free onsite service under warranty period |
|
Prime Rating at rated rpm ( as per ISO8528)1 |
kVA | 15 | 20 | 25 | 30 | ||
| kW | 12 | 16 | 20 | 24 | |||
|

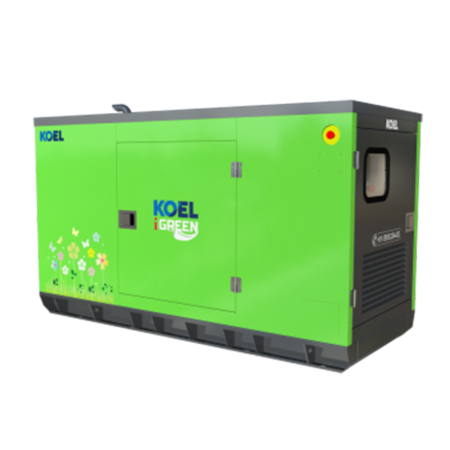

Genset Model |
KG1-15AS | KG1-20WS | KG1-25WS | KG1-30WS | |||
|
Frequency |
Hz | 50 | |||||
|
Power factor |
lagging | 0.8 | |||||
|
Voltage |
V | 230 (1Ø) & 415 (3Ø) | |||||
|
Governing class (As per ISO 8528 Part-V) |
G2 | ||||||
|
Noise level |
dBA | < 75 | |||||
|
Fuel Consumption* |
At 100% Load | Ltrs/hr | 4 | 5.1 | 5.8 | 7.6 | |
| At 75% Load | 3 | 3.8 | 4.4 | 5.8 | |||
| At 50% Load | 2.2 | 2.7 | 2.9 | 4.4 | |||
|
Fuel tank capacity |
Ltrs | 45 | 65 | 65 | 65 | ||
|
Weight of genset with canopy (approx..)^ |
Dry | Kg | 670 | 680 | 750 | 840 | |
| Wet | Kg | 810 | 880 | 1040 | 1040 | ||
|
Overall dimensions of genset^ |
Length | mm | 860 | 930 | 1090 | 1090 | |
| Width | mm | 1740 | 2205 | 2500 | 2500 | ||
| Height | mm | 1474 | 1294 | 1294 | 1294 | ||
|
Electrical Battery starting voltage |
Volts-DC | 12 | |||||
| ENGINE | |||||||
|
Engine Model |
HA294 G1 | 2R1040 G1 | 3R1040T G1 | 3R1040T G1 | |||
|
Rated output (Prime Continuous rating as per ISO 8528-1) |
kW | 15.1 | 18.8 | 24 | 30.9 | ||
| HP | 20.5 | 25.5 | 42 | 42 | |||
|
Cooling System |
Air | ||||||
|
No. of cylinder |
Number | 2 | 2 | 3 | 3 | ||
|
Cubic capacity |
Ltrs | 1.88 | 2.08 | 3.12 | 3.12 | ||
|
Bore x Stroke |
mm | 100 x 120 | 105 x 120 | 105 x 120 | 105 x 120 | ||
|
Rated Speed |
RPM | 1500 | 1500 | 1500 | 1500 | ||
|
Aspiration |
NA/TC/TA | NA | NA | TC | TC | ||
|
Lube Oil change period |
Hrs | 500 hrs | |||||
|
Lube Oil Sump Capacity |
Ltrs | 5 | 5.5 | 8 | 8 | ||
|
Coolant Capacity |
Ltrs | NA | 9 | 14.5 | 14.5 | ||
|
ALTERNATOR |
|||||||
|
Insulation Class |
Class H | ||||||
|
Alternator Efficiency (at 100% load) 0.8 pf** |
% | 85.2 | 88.6 | 89 | 87.9 | ||
|
Max Voltage Dip at Full Load 0.8 pf Lag |
Sec | < 20% (15kVA)| <16% (20kVA – 30kVA) | |||||
|
Max Time to build up rated voltage at Rated RPM |
< 5 sec provided engine reach the rated speed | ||||||
